High stability digital MEMS gyros
GYPRO® is a unique family of high performance closed-loop digital MEMS gyroscopes housed in a SMD package. While open-loop MEMS gyros tend to demonstrate poor performances in harsh conditions, the built-in force-rebalance architecture makes our GYPRO® high stability MEMS gyros extremely linear and insensitive to vibrations and linear accelerations.
High performance MEMS gyros for dynamic applications
Leveraging a best in-class vibration rejection, excellent bias stability and Angular Random Walk (ARW), GYPRO® is the perfect candidate for precision attitude and angular rates measurement in demanding environments.
The superior bias stability, scale factor repeatability and low latency make GYPRO an industry-leading sensor solution to build IMU (Inertial Measurement Unit) for high performance attitude and motion control systems as well as INS (Inertial Navigation Systems) for GNSS-aided positioning and navigation of dynamic applications.
Low-SWaP alternative to Fiber Optic Gyros (FOG)
Our GYPRO digital MEMS gyroscopes feature a 24-bit digital SPI interface that speeds-up their integration compared to conventional analog sensors. The in-house factory calibration removes the need for costly and complex temperature modeling and compensation at system-level. For applications where safety matters, the digital interface integrates an initial self-test as well as a unique continuous in-operation self-test.
Contrary to expensive and bulky solutions like FOG (Fiber Optic Gyros) and DTG (Dynamically Tuned Gyros), our high stability digital MEMS gyros are housed in a miniature hermetic SMD package that reduces the overall SWaP-C (Size, Weight, Power and Cost).
For applications requiring both high precision angular rate and acceleration measurement with high stability, the GYPRO gyroscopes are ideally complemented by our AXO® closed-loop digital MEMS accelerometers sensors that feature the same digital interface and SMD package, paving the way to a new generation of low-SWaP high performance multi-axis sensors solutions.
Key features
- 1-axis yaw rate gyro (Z-axis)
- Closed-loop architecture for best-in class linearity
- 24-bit digital SPI interface
- Hard-coded electronics, no software
- Initial and continuous self-test
- Hermetic ceramic SMD package
- Factory-calibrated
- Non classified under dual-use export control

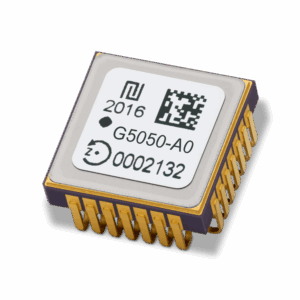

| Performance / Typical values | Unit | GYPRO®4300 | GYPRO®5050 | GYPRO®3300 |
|---|---|---|---|---|
| Input Range | °/s | ±300 | ±50 | ±300 |
| Bias instability (Allan variance) | °/h | 0.4 (typ) 2 (max) | 0.1 (typ) | 0.8 |
| Angular Random Walk | °/h | 0.07 | 0.006 (typ) | 0.15 |
| Bias in-run stability | °/h | 7 | 1 | 10 |
| Bias run to run repeatability | °/h | 10 | 10 | |
| Residual bias temperature error (1 σ) | °/h | 40 | 25 | 72 |
| Scale Factor non linearity | ppm | 60 | 100 | 100 |
| Scale Factor run to run repeatability | ppm | 60 | 25 | |
| Residual Scale Factor temperature error (1 σ) | ppm | 160 | 600 | 400 |
| Vibration Rectification Error | °/h/g² | 0.5 | 1 | 0.5 |
| Vibration range (operation) | grms | 8 [20-2000Hz] | 11.6 [20-2000Hz] | 8 [20-2000Hz] |
| Bandwidth | Hz | >200 | 30 | >200 |
| Data Rate | Hz | 1800 | 220 | 1700 |
| Latency | ms | <1 | 40 | 1 |
| Size (L x l x h) | mm | 12 x 12 x 5.5 | 12 x 12 x 5.5 | 19.6 x 11.5 x 2.9 |
| Package | 28 pins J-Lead | 28 pins J-Lead | CLCC 30 | |
| Status | Production | Prototypes | Not Recommended for New Designs |
MEMS Gyros Evaluation Boards
To speed-up the evaluation of our GYPRO MEMS precision gyros, Tronics has designed the GYPRO-EVB3, an evaluation board compatible with Arduino Leonardo platform. Simply plug your Arduino board on the GYPRO-EVB3, connect the USB interface and download Arduino.
GYPRO® Evaluation Board
